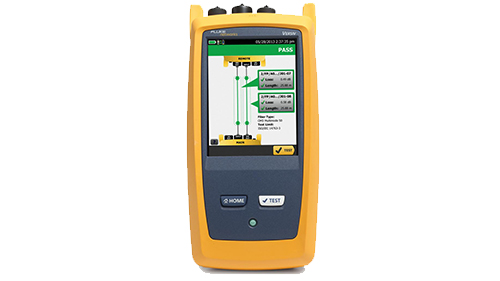

Features

Unique Features

• Versiv enables users to accomplish more than ever before with a cable tester, by accelerating every step of the testing process


• ProjX management system eases tasks from initial set-up of a job to system acceptance. It eliminates redundant steps, and ensures that all tests are completed correctly the first time, and every time


• Taptive user interface puts advanced data analysis and easy set-up and operation at the fingertips of technicians of all skill levels


• LinkWare management software provides unmatched analysis of test results and professional test reports

Standards

• Allows combined OLTS Tier 1 (basic), OTDR Tier 2 (extended) certification, end-face inspection and reporting when paired with OptiFiber™ Pro OTDR


• Set reference wizard verifies test reference cords (TRCs) per ISO/IEC 14763-3 and eliminates negative loss errors


• Encircled Flux compliant optical launch conditions required by ANSI/TIA and ISO/IEC standards

Performance

• Three-second Autotest �V (four times faster than legacy testers) includes optical loss measurement of two fibers at two wavelengths with distance measurement and optical loss budget calculation
• Provides automatic Pass/Fail analysis to industry standards or custom test limits
• Identifies incorrect test procedures resulting in negative loss results
• Onboard (USB) inspection camera documents images of fiber optic end-faces
• Interchangeable power meter adapters available for all typical connector types (SC, ST, LC and FC) to enable the most accurate 1-jumper reference method
• Built-in visual fault locator for basic troubleshooting and polarity determination
• Dual wavelength measurement capability on a single fiber allows the tester to be used in applications that require only one fiber link.
• Compliant with TIA-526-14-B and IEC 61280-4-1 Encircled Flux requirements with no additional equipment or procedures

ProjX™ Management System

Versiv's ProjX™ System manages jobs from setup to systems acceptance, ensuring that all tests are completed correctly. Enter the testing details for a job once, and ProjX stores them in a project file with a name the whole team can understand. Change modules or jobs without having to re-enter details. Support multiple testers on the same job by sharing project files via USB sticks or email. Easy just met efficient.

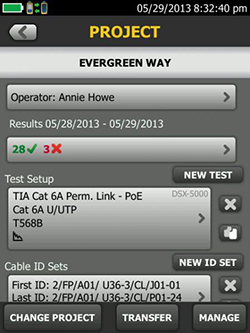

Set-up or view test limits, and testing attributes.	Project menu screen shows percent complete per job.		Project Specific screen shows up to the minute project details.

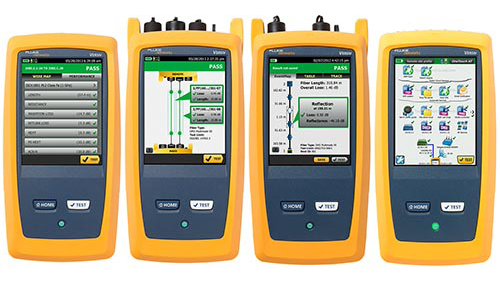

Taptive™ User Interface

Now you can test across multiple media types and requirements as easy as using a smartphone. Simply, select the job you��re working on, and the large display confirms the test that needs to be performed. Taptive helps you tap into the overall cabling infrastructure faster and more easily.

LinkWare™ Management Software

Project managers have full capabilities to monitor workflow and consolidate test results.

LinkWare pulls data togther into a single report that is easy for customers to understand, showcasing quality and workmanship. LinkWare stats, provides automated statistical reports that turns test results into charts to reveal performance. The report even summarizes your entire cabling and fiber infrastructure in one compact, graphical format, so it is easy to verify margins and anomalies.

Integrate tests from different testers into one unified report. LinkWare Stats summarizes all project data

Specifications

Power Meter Specifications
Input Connector	Interchangeable connector adapter (LC standard, SC, ST and FC optional)
Detector Type	InGaAs
Wavelengths	850 nm, 1300 nm, 1310 nm, 1550 nm
Power Measurement Range	< +/- 5% +/- 32 pW
Power Measurement Uncertainty1, 2	< �� 0.1 dB
Re-calibration Period	1 year
1. +/- 100 pW at 850 nm 2. Under the following conditions: Power level 100 �gW (-10 dBm), continuous wave (CW) for absolute power at 850 nm and 1310 nm. Divergent beam, NA = 0.20 for 50/125 �gm and NA = 0.14 for 9/125 �gm. Ambient temperature 23�X �� 1�XC. SC/UPC connector with ceramic ferrule. After a 5 minute warm-up. Traceable to NIST. 3. -3 dBm to -55 dBm at 850 nm and 1310 nm. Ambient temperature 23�X �� 1�XC. After a 5 minute warm-up.
Loss/Length Specifications
Specification	CertiFiber Pro Multimode Modules	CertiFiber Pro Singlemode Modules
Testing Speeds (excludes referencing times)	Smart Remote mode: < 3 seconds (2 wavelengths, one direction, auto wavelength detection) Far End Source mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection) Loopback mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection)
Input/Output Connectors	Interchangeable connector adapter (LC standard, SC, ST and FC optional) -
Launch Condition1, 2	Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1
Fiber Types Tested	50/125 �gm or 62.5/125 �gm	singlemode
Source Type and Wavelengths	LED source 850 nm �� 30 nm 1300 nm �� 20 nm	Fabry-Perot laser diode 1310 nm �� 20 nm 1550 nm �� 30 nm
Maximum Length Measurement	12 km	130 km
Length Measurement Accuracy	�� 1.5 m plus �� 1 % of length	�� 1.5 m plus �� 1 % of length
Output Power (Nominal)	≥ -24 dBm with EF-TRC	≥-4 dBm
Output Power Stability3	�� 0.05 dB over 8 hours �� 0.03 dB over 15 minutes	�� 0.1 dB over 8 hours �� 0.08 dB over 15 minutes
1. At the output of the EF-TRC 2. Variations between EF measurement equipment may occur but EF compliance can be expected with a 95% confidence factor 3. Relative to power level after 15 minute warm up �V at constant temperature
Loss/Length Specifications (continued)
Source Wavelengths	850 nm, 1300 nm, 1310 nm, 1550 nm
Power Measurement Range	0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths) -
Power Measurement Uncertainty1, 2	< +/- 5% +/- 32 pW
Measurement Linearity3	< �� 0.1 dB
Re-calibration Period	1 year
1. +/- 100 pW at 850 nm 2. Under the following conditions: Power level 100 �gW (-10 dBm), continuous wave (CW) for absolute power at 850 nm and 1310 nm. Divergent beam, NA = 0.20 for 50/125 �gm and NA = 0.14 for 9/125 �gm. Ambient temperature 23�X �� 1�XC. SC/UPC connector with ceramic ferrule. After a 5 minute warm-up. Traceable to NIST. 3. -3 dBm to -55 dBm at 850 nm and 1310 nm. Ambient temperature 23�X �� 1�XC. After a 5-minute warm-up.
Selected Specifications
Visual Fault Locator (VFL)
Title	Requirement
Output Power	>-5 dBm < 0 dBm SMF-28 singlemode fiber Continuous wave SC/UPC connector
Operating Wavelength	650 nm nominal
Output Modes	Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency)
Connector Adapter	2.5 mm universal
Laser Safety	Class II CDRH Over operating temperature range
Environmental Specifications
Title	Requirement
Operating Temperature	-18�X C to 45�X C
Storage Temperature	-30�X C to +60�X C
Operating Relative Humidity % RH without condensation	0 % to 90 %, 32 �XF to 95 �XF (0�X C to 35�X C) 0 % to 70 %, 95 �XF to 113 �XF (35�X C to 45�X C)
Vibration	Random, 2 g, 5 Hz-500 Hz
Shock	1 m drop test with and without module and adapters
Safety	CSA C22.2 No. 1010.1: 1992 EN 61010-1 1st Edition + Amendments 1, 2
Pollution Degree	2
Altitude	Operating: 4,000 m; storage: 12,000 m
EMC	EN 61326�V1

Models

	CFP-100-M AP Versiv Main & Remote + MM 850/1300nm OLTS Modules
	CFP-100-S AP Versiv Main & Remote + SM 1310/1550nm OLTS Modules
	CFP-100-Q AP Versiv Main & Remote + Quad 850/1300/1310/1550nm OLTS Modules
