| Detailed Specifications |
| IR resolution (FPA size) |
160 x 120 FPA Uncooled Microbolometer |
| Spectral band |
7.5 μm to 14 μm (long wave) |
| Capture or refresh rate |
9 Hz |
| NETD (Thermal sensitivity) |
≤0.10 �XC at 30 �XC target temp (100 mK) |
| FOV (Field of view) |
22.5 �XH x 31 �XV |
| IFOV (Spatial resolution) |
3.39 mRad |
| Temperature measurement range (not calibrated below -10�XC) |
-20�XC to +250�XC (-14�XF to +482�XF) |
| Temperature measurement accuracy |
�� 2 �XC or 2 % (at 25 �XC nominal, whichever is greater) |
| Focus mechanism |
Focus-free 1.2 m (4 ft) and beyond |
| IR-Fusion® technology |
No, full IR only |

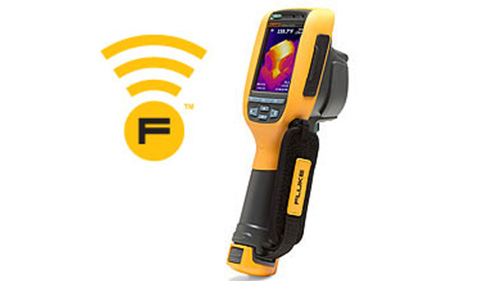

| CNX wireless enabled |
Yes |
| Color alarms |
�X |
| Standard palettes |
Blue-Red, Ironbow, Grayscale and Amber |
| Ultra Contrast™ palettes |
�X |
| Hot/cold markers |
�X |
| User definable spot markers |
In SmartView® only |
| Centerbox (MIN/AVG/MAX) |
�X |
| Level and span control |
Manual and auto |
| Minimum span in auto mode |
5�XC |
| Minimum span in manual mode |
2.5�XC |
| Minimum IR focus distance |
1.2 m (4 ft) |
| Weight |
0.726 kg (1.6 lb) |
| Size |
28.4 x 8.6 x 13.5 cm (11.2 x 3.4 x 5.3 in) |
| LCD display |
3.5 inch diagonal (portrait format) |
| Visible camera |
N/A |
| Minimum automatic parallax correction |
N/A |
| IR-PhotoNotes™ annotation system |
�X |
| Laser pointer |
Yes |
| Torch |
�X |
| Electronic (cardinal) compass |
�X |
| Emissivity correction |
Yes |
| Transmission correction |
�X |
| Background (reflected) compensation |
Yes |
| Voice annotation (audio) |
�X |
| Multi-mode video output |
�X |
| Multi-mode video recording (standard avi w/ mpeg encoding) |
�X |
| Multi-mode video recording (radiometric .Is3) |
�X |
| Memory review |
Thumbnail review |
| Battery (field-replaceable, rechargeable) |
One |
| Battery life |
4+ hours (each)* |
| External battery charging base |
Optional (accessory) |
| Charging power supply |
Yes |
| Drop test |
2 meter (6.5 feet) |
| Ingress protection (IP) rating (IEC 60529) |
IP 54 |
| Recommended Calibration cycle |
Two-years |
| Multifunction card reader |
�X |
| Memory storage |
2 GB SD memory card |
| Direct download capability |
Mini USB download direct to PC |
| Operating temperature range |
-10 �XC to +50 �XC (14 �XF to 122 �XF) |
| Storage temperature range |
-20 �XC to +50 �XC (-4 �XF to 122 �XF) |
| Operating humidity |
Operating and storage 10 % to 95 %, Non-condensing |
| Vibration and shock |
2G, IEC 68-2-26 and 25G, IEC 68-2-29 |
| Safety standards |
IEC 61010-1: Cat None, Pollution degree 2 |
| C Tick |
IEC/EN 61326-1 |
| EMI, RFI, EMC |
EN61326-1; FCC Part 5 |
| User manuals |
Czech, English, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Dutch, and Hungarian |
| Standard warranty period |
Two-years |
| Extended warranty and service plans |
Yes |
