Link-Live offers two levels, Essentials and Job Pro. Essentials comes standard with all models of LinkSprinter and LinkRunner AT, and provides important test results management and reporting capabilities. Job Pro expands Essentials into a more complete test results management platform providing greater job visibility, project control, tester and user management. Job Pro is available as a subscription based service with 1 and 3 year options.
Essentials (Complementary)
Manage, sort and analyze network test results
Filter results by time, user, network, errors
Download firmware updates
Annotate test results
Generate reports in .pdf or .csv output
Centralized multi-unit configuration
Job Pro (Requires paid subscription)
Includes all Essentials services listed above and adds:
Job folders (organize by site, job, technician, customer, etc.)
Custom cover page and analytical summary report
On-tester persistent comments
Auto file into folders
Attach photos
Available in 1 year and 3 year subscription offerings.
» On your phone
Need more details? LinkSprinter 200 and 300 can deliver them in your mobile device browser with its built in Wi-Fi access point. These models allow troubleshooting of network problems using your phone or tablet as a user interface. Point your browser to your LinkSprinter and connect to it as a Wi-Fi access point, then pull up your web browser and type in address 172.16.9.9 to instantly see detailed results come up on your mobile device.
Detailed test results include:
Power Over Ethernet (PoE)
Check to make sure you can power a phone, security camera or Access Point through a specific port. The LinkSprinter Network Tester can even run without batteries on PoE.
Link to the Switch
Perform a switch test, which indicates switch name, model, slot, port and VLAN you are connected to using CDP/LLDP/EDP. Know your available speed and duplex settings.
DHCP Connection
Confirm that the DHCP server is running and responsive. Request an IP address, get your subnet information, and identify the default gateway and DNS server.
Gateway Connection
Verify the gateway/router address and reachability by pinging the device.
Internet Connection
Confirm cloud connectivity or internal service reachability. Verify DNS server lookup and application port connectivity.
» Cable Test and Blink Light on Switch Port

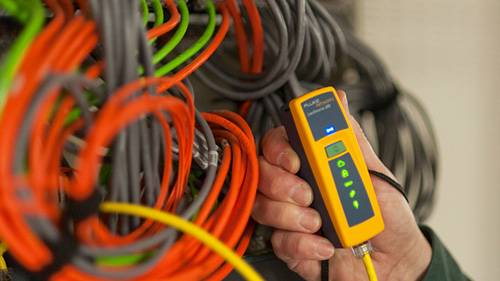

When you need to validate cable integrity, the LinkSprinter 300 allows you to run a cable test and displays any cable fault as well as distance to open or short.
If you need to verify the connection path between jack location and switch port, LinkSprinter 300 will blink the light on the switch port it is connected to, allow you to understand the full connection path. You can document this information in Link-Live Cloud Service.
Specifications
General
Dimensions (with module and battery installed)
4.36�� x 1.6�� x 1.28�� (11.07 cm x 4.06 cm x 3.25 cm)
Weight (with module and battery installed)
Model 100: 0.250 lb (0.113 kg)
Model 200/300: 0.255 lb (0.116k kg)
Battery
2 AA Alkaline
Environmental
Operating Temperature and Relative Humidity
32�XF to 122�XF (0�XC to 50�XC ), Relative Humidity 5% to 90% Non-condensing
Operating: 13,123 ft. (4,000 m) Storage: 39,370 ft. (12,000 m)
EMC
EN 61326-1:2006
Certifications and Compliance
Conforms to relevant European Union directives
Conforms to relevant Australian standards
Listed by the Canadian Standards Association
Conforms to relevant FCC standards
Wireless (Model 200 and 300 only)
Specification Compliance
IEEE 802.11b/g
Frequency Channels
802.11 Channels 1 thru 11 default is 11s
Operating frequency
2.412 ~ 2.484 GHz, ISM Band
Regulatory Domain
EN 301 489-1/17
Browser
Internet Explorer 9.0, Firefox 3.6, Chrome 5.0, Safari 5.1 (minimum revision)
