| Detailed Specifications |
| Temperature |
| Temperature measurement range (not calibrated below -10 �XC) |
-20 �XC to +600 �XC
(-4 �XF to +1112 �XF) |
| Temperature measurement accuracy |
�� 2 �XC or 2 % (at 25 �XC nominal, whichever is greater) |
| On-screen emissivity correction |
Yes |
| On-screen reflected background temperature compensation |
Yes |
| On-screen transmission correction |
Yes |
| Imaging Performance |
| Image capture frequency |
9 Hz refresh rate or 60 Hz refresh rate depending upon model variation |
| Detector type |
Focal Plane Array, uncooled microbolometer, 280 X 210 pixels |
| Total pixels |
58,800 |
| Thermal sensitivity (NETD) |
≤0.05 �XC at 30 �XC target temp. (50 mK) |
| Infrared spectral band |
7.5 μm to 14 μm (long wave) |
| Visual (visible light) camera |
Industrial performance 2.0 megapixel |
| Minimum focus distance |
46 cm (approx. 18 in) |

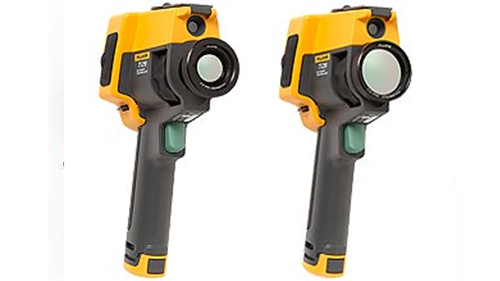

| Standard infrared lens type |
�EField of view : 23 �X x 17 �X
�ESpatial resolution (IFOV) : 1.43 mRad
�EMinimum focus distance : 15 cm (approx. 6 in)
|
| Optional telephoto infrared lens type |
�EField of view : 11.5 �X x 8.7 �X
�ESpatial resolution (IFOV) : 0.72 mRad
�EMinimum focus distance : 45 cm (approx. 18 in)
|
| Optional wide-angle infrared lens type |
�EField of view : 46 �X x 34
�ESpatial resolution (IFOV) : 2.86 mRad
�EMinimum focus distance : 7.5 cm (approx. 3 in) |
| Focus mechanism |
Manual, one-handed Smart Focus capability |
| Image presentation |
| Palettes |
�EStandard: Ironbow, Blue-Red, High Contrast, Amber, Amber Inverted, Hot Metal, Grayscale, Grayscale Inverted
�EUltra Contrast™: Ironbow Ultra, Blue-Red Ultra, High Contrast Ultra, Amber Ultra, Amber Inverted Ultra, Hot Metal Ultra, Grayscale Ultra, Grayscale Inverted Ultra
|
| Level and span |
Smooth auto-scaling and manual scaling of level and span |
| Fast auto toggle between manual and auto modes |
Yes |
| Fast auto-rescale in manual mode |
Yes |
| Minimum span (in manual mode) |
2.5 �XC (4.5 �XF) |
| Minimum span (in auto mode) |
5 �XC (9 �XF) |
| IR-Fusion® information |
| Automatically aligned (parallax corrected) visual and IR blending |
Yes |
| Picture-In-Picture (PIP) |
Three levels of on-screen IR blending displayed in center of LCD |
| Full screen infrared |
Three levels of on-screen IR blending displayed in center of LCD |
| Color alarms (temperature alarms) |
High-temperature alarm (user-selectable) |
| Image capture and data storage |
| Image capture, review, save mechanism |

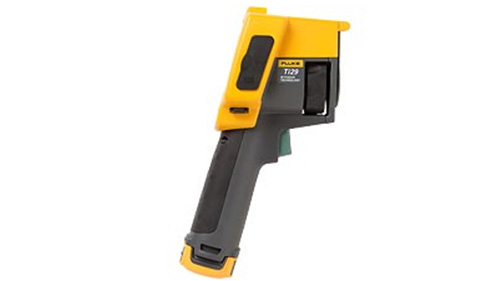

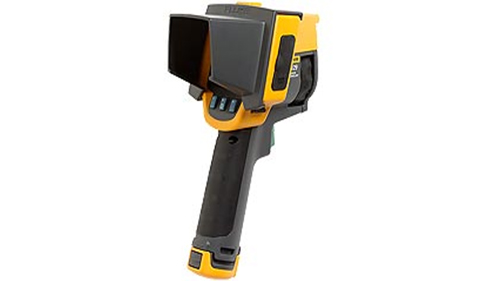

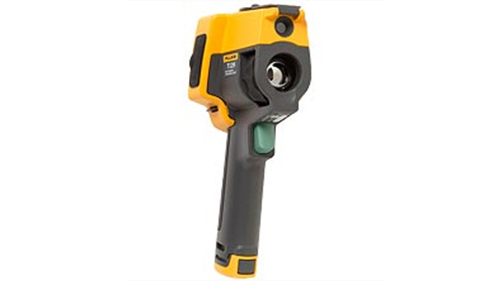

The Ti29 allows user to adjust palette, blending, level, span, IR-Fusion® mode, emissivity, and reflected background temperature compensation, and transmission correction on a captured image before it is stored. |
| Voice annotation |
60 seconds maximum recording time per image; reviewable playback on imager |
| Storage medium |
One-handed image capture, review, and save capability |
| File formats |
SD Memory Card (2 GB memory card will store at least 1200 fully radiometric (.is2) IR and linked visual images each with 60 seconds voice annotations, or 3000 basic bitmap (.bmp) images, or 3000 jpeg (.jpeg) images; transferrable to PC via included multi-format USB card reader |
| Export file formats w/SmartView® software |
�ENon-radiometric (.bmp) or (.jpeg) or fully-radiometric (.is2)
�ENo analysis software required for non-radiometric (.bmp and .jpeg) files |
| General Specifications |
| Operating temperature |
-10 �XC to +50 �XC (14 �XF to 122 �XF) |
| Storage temperature |
-20 �XC to +50 �XC (-4 �XF to 122 �XF) without batteries |
| Relative humidity |
10 % to 95 % non-condensing |
| Display |
9.1 cm (3.7 in) diagonal landscape color VGA (640 x 480) LCD with backlight and clear protective cover |
| Controls and adjustments |
User selectable temperature scale (�XC/�XF) |
| Language selection |
| Time/Date set |
| Emissivity selection |
| Reflected background temperature compensation |
| Transmission correction |
| User selectable hot spot and cold spot, and center point on the image (other custom markers and shapes in SmartView® software) |
| High temperature alarm |
| User selectable backlight: ��Full Bright or��Auto |
| Information display preference |
| Software |
SmartView® and SmartView Mobile App - full analysis and reporting software included |
| Batteries |
Two lithium ion rechargeable smart battery packs with five-segment LED display to show charge level |
| Battery life |
Four+ hours continuous use per battery pack (assumes 50 % brightness of LCD and average usage) |
| Battery charge time |
2.5 hours to full charge |
| AC battery charging |
Two-bay ac battery charger (110 V ac to 220 V ac, 50/60 Hz) (included), or in-imager charging. AC mains adapters included. Optional 12 V automotive charging adapter. |
| AC operation |
AC operation with included power supply (110 V ac to 220 V ac, 50/60 Hz). AC mains adapters included. |
| Power saving |
Sleep mode activated after five minutes of inactivity, automatic power off after 30 minutes of inactivity |
| Safety standards |
IEC 61010-1: Cat None, Pollution degree 2 |
| Electromagnetic compatibility |
Meets all applicable requirements in EN61326-1:2006 |
| C Tick |
IEC/EN 61326-1 |
| US FCC |
CFR 47, Part 15 Class B |
| Vibration |
0.03 g2/Hz (3.8 grms), IEC 68-2-6 |
| Shock |
25 g, IEC 68-2-29 |
| Drop |
2 meter (6.5 feet) with standard lens |
| Size (H x W x L) |
27.7 cm x 12.2 cm x 17.0 cm (10.9 in x 4.8 in x 6.7 in) |
| Weight (battery included) |
1.05 Kg (2.3 lb) |
| Enclosure rating |
IP54 (protected against dust, limited ingress; protection against water spray from all directions) |
| Warranty |
Two-years (standard) |
| Recommended calibration cycle |
Two-years (assumes normal operation and normal aging) |
| Supported languages |
Czech, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, and Turkish |
